Three-dimensional printing of a sucrose scaffold based on pneumatic control: relevant technological parameters

doi:10.3969/j.issn.2095-4344.2016.25.020

Abstract

Abstract:

BACKGROUND: The sucrose is an ideal material for auxiliary support and mold filling that is suitable for application in the medical field with three-dimensional (3D) printing. In China, there are many studies about the 3D printing with sucrose, but the accuracy and porosity of the stent are still unclear.
OBJECTIVE: To explore the technological parameters of the sucrose scaffold by 3D printing technology.

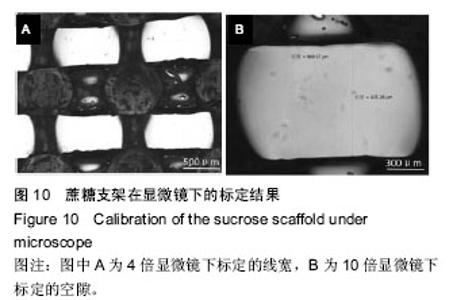

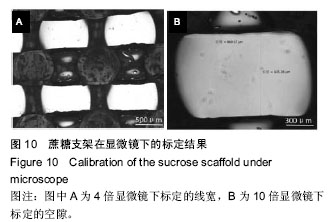

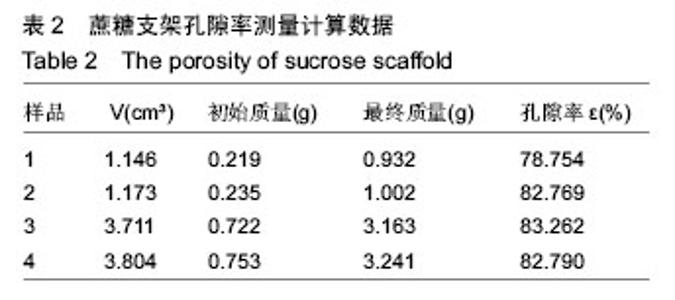

METHODS: From the perspective of physical and chemical properties, the sucrose viscosity and thermal decomposition with the change of temperature were analyzed. Based on the pneumatic controlled FDM technology, the mature sucrose scaffold was obtained by researching the match of temperature and pressure, layer setting, as well as the match of speed and pressure. Then the scaffold was demarcated with microscope, and the porosity was measured by immersion in absolute ethyl alcohol.

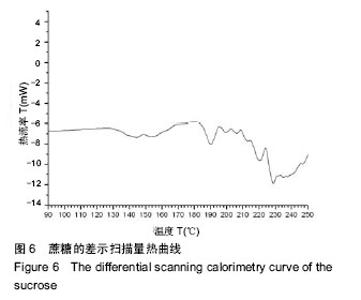

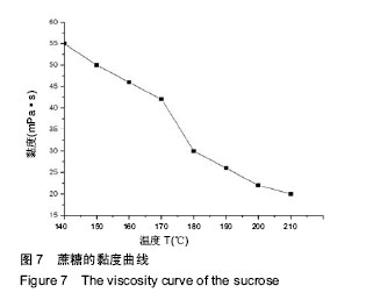

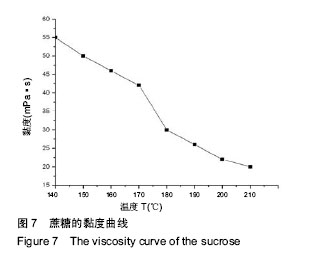

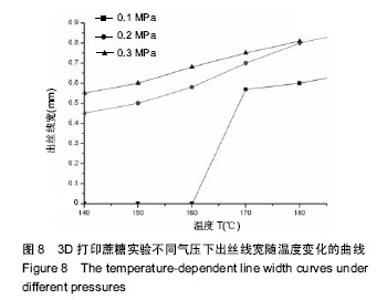

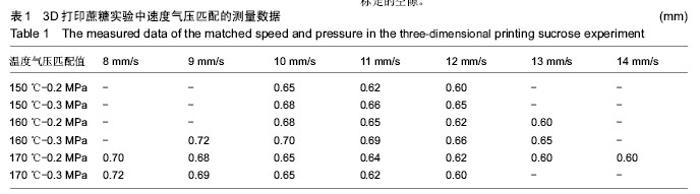

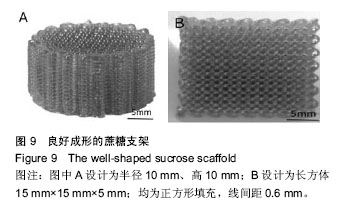

RESULTS AND CONCLUSION: The sucrose was completely melted at 180 oC, with the biggest liquidity. When the temperature was over 195 oC, the caramel reaction occurred. As the temperature increased, the sucrose viscosity decreased. The optimal molding parameters of the sucrose scaffold with pneumatic control-based 3D printing were 170 oC-0.2 MPa-12 mm/s (temperature-pressure-printing speed). The line width and mean porosity of the well-shaped sucrose scaffold were 700 μm and 81.893%, respectively.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

Key words: Sucrose, Air Pressure, Stents, Tissue Engineering

CLC Number:

R318

Zhao Xiao-bo, Sun Kai-yu, Liu Chong . Three-dimensional printing of a sucrose scaffold based on pneumatic control: relevant technological parameters[J]. Chinese Journal of Tissue Engineering Research, 2016, 20(25): 3778-3784.

Figures/Tables 7

References

[1] 宋晓美.快速成形技术的特性分析及应用研究[J].机电工程技术,2015,44(9):58-60.

[2] 刘晓辉.快速成型技术发展综述[J].农业装备与车辆工程, 2008,46(2):10-13.

[3] 李秋爽.快速成型技术在医学领域的应用研究[D].山东大学,2008.

[4] 连芩,李涤尘,陈成,等.面向组织工程化软组织的制造技术及增材制造[J].中国组织工程研究, 2014,18(8):1263-1269.

[5] 黄霞,陈家昌,申长雨,等.骨组织工程支架材料研究进展[J].化工新型材料,2010,38(9):65-68.

[6] 郑欣,陈一心,邱旭升,等.快速成型技术在骨组织工程中的应用进展[J].中国矫形外科杂志, 2014,22(24):2244-2247.

[7] 杨久林,谢红国,于炜婷,等.组织工程用壳聚糖研究进展[J].功能材料,2013,44(11):1521-1525.

[8] 胡涛,徐铭恩,严明,等.不同比例聚乳酸羟基乙酸复合骨支架的低温沉积制造及性能[J].中国组织工程研究, 2015, 19(12):1805-1811.

[9] 索海瑞,岳秀艳,史廷春,等.高分子生物材料快速成形构建组织工程支架的研究[J].中国组织工程研究与临床康复, 2008,12(6):1101-1106.

[10] Billiet T,Gevaert E,De Schryver T,et al. The 3D pringting of gelatin methacrylamide cell- laden tissue-engineered constructs with high cell vialility. Biomaterials.2014;(35):49-62.

[11] 覃泽林,孔令孜,李小红,等.广西蔗糖产业发展竞争力分析[J].南方农业学报,2015,46(4):722-728.

[12] 王立升,郭鑫,刘力恒,等.医药级蔗糖制备工艺研究[J].食品科技,2008,33(7):148-150.

[13] 吴其晔,巫静安.高分子材料流变学[M].北京:高等教育出版社,2002.

[14] 郭健.浅析差示扫描量热法测定材料的比热容[J].太原科技,2007,165(10):19-20.

[15] 尹应梅.基于DMA法的沥青混合料动态粘弹特性及剪切模量预估方法研究[D].华南理工大学,2011.

[16] 黄友如,华欲飞,裘爱泳.差示扫描量热技术及其在大豆蛋白分析中的应用[J].粮食加工,2004,29(2):58-61.

[17] 许鑫,马永强,姚姗姗,等.SEM DSC和RVA在豆类淀粉研究中应用[J].农产品加工•学刊, 2010,9(9):44-47.

[18] 卓蓉晖,胡言,陈文怡.用不同方法测定材料的玻璃化转变温度[J].现代仪器,2004, 10(4):25-26.

[19] 陈中中,早热木,李涤尘,等.利用快速成型技术制造人工生物活性骨[J].西安交通大学学报,2003,37(3):273-276.

[20] DongNN.Study of carbohydrate compounds at different temperatures by pyrolysis-gas chrometography-mass spectrometry.J Chin Mass Spec Soc. 2004;25(1):24-28.

[21] Xiong Z,Yan Y,Wang S,et al.Fabricationofporous scaffolds for bone tissue engineering via low temperature deposition.Scripta Materialia. 2002;46(11): 771-776.

[22] 索海瑞,岳秀艳,史廷春,等.组织工程支架的低温沉积制造工艺参数研究[J].机电工程,2009,26(3):57-60.

[23] 屈晨光,张师军,高达利,等.环境温度对3D打印成型精度的影响[J].塑料工业,2015, 43(8):53-55.

[24] 梁宪涛.3D打印喷头的温度分析及控制策略研究[J].黑龙江科技信息,2015,17(32):195.

[25] 罗楠,王泉,刘红霞.一种快速3D打印分层方向确定算法[J].西安交通大学学报,2015, 49(5):140-146.

[26] 赵辰.3D打印机分层软件的设计与实现[D].东南大学, 2009.
